JBL Pro audio powers Deadpool & Wolverine screening at Comic-Con

Comic-Con 2024 turned to JBL Professional speakers to provide the high-quality sound needed for everything from panels to screenings.

The roots of Comic-Con in San Diego stretch all the way back to a small gathering in 1970, but the 2024 Comic-Con packed the San Diego Convention Center with well over 135,000 attendees eager to celebrate an entire culture devoted to all things to do with comics and popular arts, from feature films to video games to, obviously, comic books.

Comic-Con draws crowds that may wait in line overnight for entry to presentations featuring high-profile actors, directors, and other celebrities, usually promoting new entertainment offerings.

Aside from the presence of the various comics, toy, and book publishers and manufacturers, Comic-Con’s events represent one of the best opportunities that film and game studios get for directly reaching audiences and firing them up for their latest productions, so the quality standard for video and audio at their events is set extremely high to ensure unforgettable fan experiences.

For years, Show Imaging has turned to JBL Professional speakers to provide the high-quality sound needed for everything from panels to screenings, and as the non-profit convention has grown in size and prominence, the JBL sound systems used have grown in size and sophistication. For the last seven years, San Diego’s Show Imaging has provided these systems for Comic-Con’s major events.

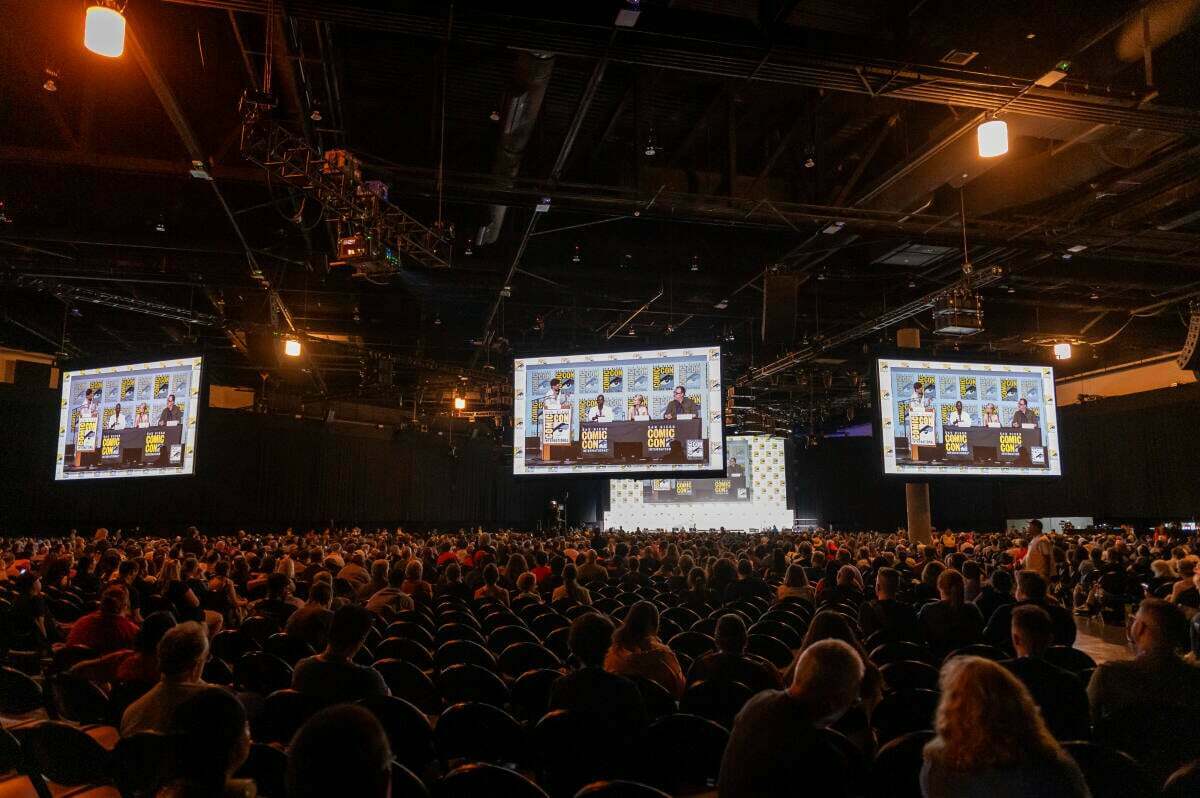

While Comic-Con uses the entire convention centre, it is the presentations in Hall H that often garner the widest attention. Upwards of 6,000 fans pack into Hall H to see and hear panel discussions, clips of upcoming productions, and cast members.

One of the big moments at 2024 Comic-Con was an exclusive screening of Marvel’s Deadpool & Wolverine a day after its world premiere.

But the demands of the event pose challenges and complexities to giving every attendee the thrill of a lifetime, and Hall H itself adds yet another series of hurdles to overcome. Show Imaging marshalled a substantial arsenal of loudspeakers to get the job done.

Hall H presentations commonly involve two types of sound content. First, there is spoken word, such as interviews and commentary, which requires high intelligibility mono sound evenly covering the room. Second, there are soundtracks, which require very dynamic and immersive multi channel delivery.

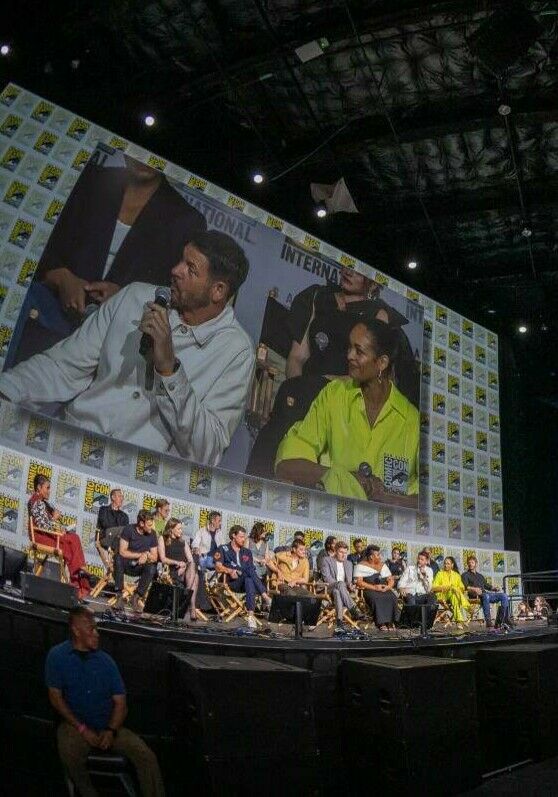

“A major challenge of this event is that you have to have a cinema system with a traditional LCR behind the perforated screen for playback, but then you have to deal with panellists and people talking on stage in front of the screen, which obviously you can't put in the cinema system without causing feedback,” said Elliot Carroll, Show Imaging‘s director of audio services. “So, there's a cinema system and then a separate corporate system, with speakers that are outside of the screen.”

The LCR cinema system consists of three arrays of 10 JBL VTX A12 Dual 12-inch Line Array Loudspeakers. Surround content plays through 12 arrays of five VTX A6 Sub-compact Dual 6.5-Inch Line Array. LFE signals play though a dozen VTX B28 Arrayable Dual-18-inch Subwoofers on either side of the stage, plus a centre array of eight B18 Arrayable Single 18-inch Subwoofers.

The surround speakers, hung above the video walls running down each side of the hall, are suspended from custom trusses designed and built by Show Imaging’s custom fabrication department.

The basic corporate system is two arrays of 11 VTX A8 Dual 8-inch Compact Line Array Loudspeakers, plus a flown centre fill of two arrays with six A8 cabinets. Four delay arrays of six A12 cabinets plus two VTX A12W (wide coverage angle) cabinets on the bottom fly between supplemental video screens for the rear of the room.

An array of six A8 cabinets covers the very furthest reach of the room. The SRX712M 12-inch Two-Way Stage Monitors are used onstage.

The situation becomes more challenging with the need to integrate these separate systems in order to deliver proper coverage to the room for both kinds of sources, and this is where scale comes into play.

“The room's so big you need to use delay speakers, so you have to mix the cinema and corporate systems together for the people hearing the delay speakers,” explained Carroll, “and this gets further complicated by having six sets of surround speakers on each side, which we've added in recent years. You end up trying to mix it all in, knowing you’re not in a nice, compact movie theatre where everyone can hear every speaker.”

Of course, combining signals is not all that is involved in integrating the two systems. Levels must be balanced between them, too.

But it gets even harder. Not only is Hall H far more capacious than any movie theatre, it is also asymmetrical, in fact, it has a highly irregular pentagonal shape, which creates complications literally from every angle, from simply delivering clear mono coverage to the farthest-field areas, to delay synchronisation that is different on each side of the room and different for the cinema and corporate systems.

A seat in the middle or rear of the room might be receiving a delayed signal from the corporate system mixed with delayed LCR signals from the cinema system, plus signals from surround speakers. And there’s yet another major factor to consider.

“The distances and resulting time differences between arrays at this scale isn't a few milliseconds, it's more like 60 milliseconds. So, you really have to adapt,” added Eric Stahlhammer, who has mixed Comic-Con events in Hall H since 2012.

In 2018, Stahlhammer joined the staff of Harman (under which JBL Professional is a brand), where he is currently senior global product manager for professional audio hardware, DSP, and Software, but he still works at Comic-Con every year to keep his hand in on real field work.

Under these circumstances, calculating delay times that achieve both intelligibility and good imaging becomes a mind-boggling task. And this is not even to mention the need for equalisation to compensate for the filtering effect the main screen imposes on the LCR system, or to match the tonality of the large A12s behind the screen to the smaller A6 surround speakers.

“This is the show that breaks everything because it's got so many edge cases on so many parts of how we usually do things in this audio business,” Stahlhammer said, “but it’s a fun exercise.”

“The game changer this year was JBL’s Venue Synthesis software,” added Carroll. “The key thing with Venue Synthesis is being able to see the coverage of everything in a 3D space, because you can see what the system is doing as a whole. When we're tuning, we're just confirming what we already think is going to happen because we can see it in the software.

"It takes out some of the guesswork and shortens the tuning time. Having Hall H drawn up in Venue Synthesis was helpful to us dialling in the new delay hangs and the surrounds much, much faster than we were able to do in the past. That was huge because it gained us time back onsite.”

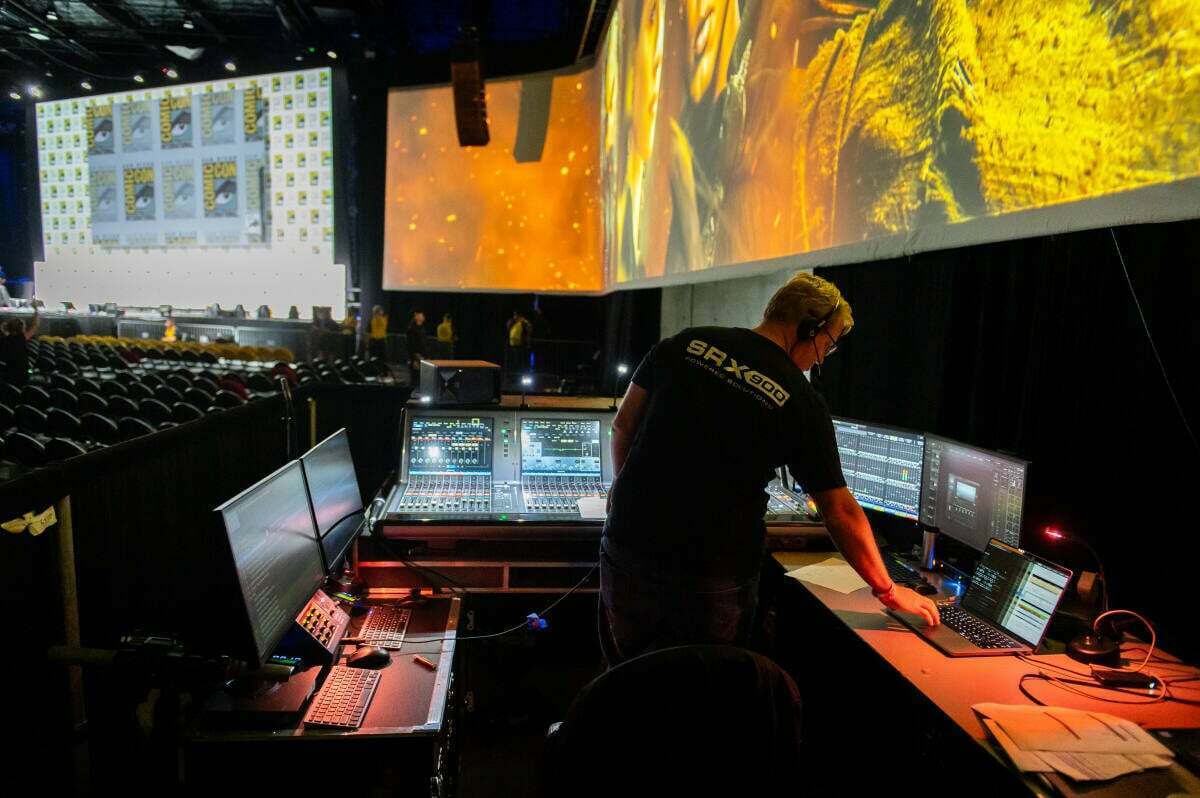

Actual implementation of the delays is done with a delay matrix that allows each feed to be appropriately delayed before signals are combined and distributed. And after all the elaborate calculation and implementation is said and done? “It works really well,” said Stahlhammer. “When it's timed right and tuned right, the match between the cinema and corporate systems in sound quality, imaging, and level at a given seat is exceptional.”

As Carroll notes, delivering great sound for Hall H events was, and remains, a major challenge. “It is a lot of moving parts and pieces, for sure, taking place in an environment that demands an extremely high-quality standard,” he added.

But JBL Professional tools, properly applied, created a path to success. “The big thing for us is that having tools like Venue Synthesis gives us a more accurate picture of how to redesign the system, as we did this year, to help elevate the fan experience. That's the goal. We work closely with the studios and craft these technical solutions, but at the end of the day, we want the fans to walk away just wild, right?” concluded Carroll.
